Product Description

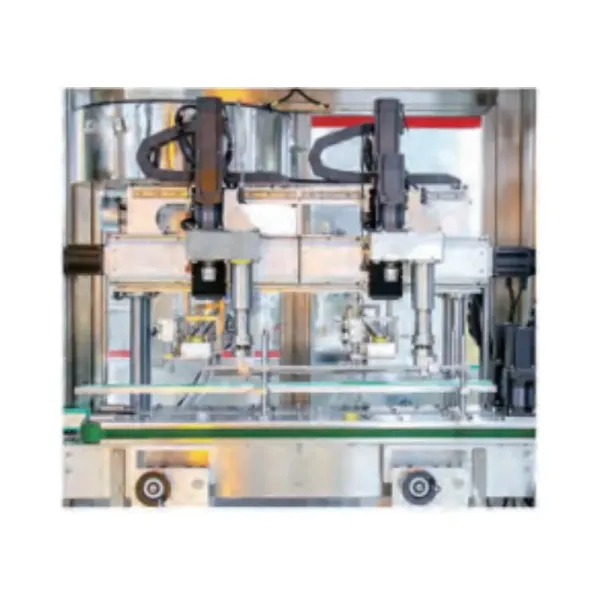

This line is suitable for filling edible oil products with specifications of 1L-5L

Main features:
1. This line is suitable for filling edible oil 1-5L specification products:
2. One click adjustment of the entire line (quick switching of specifications), reducing labor intensity and labor costs;
3. The filling speed of the entire line is 2800 barrels per hour, which can be customized according to needs;
4. Filling accuracy 5L bottle ± 7g, accurate precision, reducing unnecessary waste;
5. Linear piston tracking filling, tracking screw cap;
6. Flexible filling, easy adjustment, suitable for switching back and forth between multiple specifications;
7. The entire line is made of stainless steel material, with a beautiful and elegant appearance.

Product Parameters

This Semi Automatic Filling and Capping Line need several workers to load the bucket, packing and palletizer; the filling and capping are automatic, which can decrease the cost siginificantly and with an acceptable and flexible production.

Main Parameters: 1) Power supply: AC38OV,50/60HZ 2) Single line power approximately: 35KW 3) Gas source pressure: (0.6-0.7) MPa Dry, clean and stable gas source 4) Single line gas consumption approximately: 1.2mm ³/minute

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Applicable bottle type:
Length 80-240mm,Width 80-180mm,Height 200-320mm

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

GZS-LA Upper weighing filling machine

1) Applicable bottle types: length 80-240mm, width 80-180mm, height 200-320mm 2) Capacity: 5L ≤ 2800 barrels/hour 3) Filling accuracy: 5L ± 7g

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

FGX-1/2A Tracking Capping machine -------1/2/3 capping heads
1 head --- 2200 BPH; 2 head --- 4000 BPH
